这个函数返回一个值的小数部分，也就是说，它的十进制值，例如，1.534f的frac返回0.534f；

frac (3,27) = 0,27f It’s the same as 3,27f – 3.
frac (0,47) = 0,47f
frac (1,0) = 0,0f

语法如下：

float frac (float n)
{
    return n - floor(n);
}

float2 frac (float2 n);
float3 frac (float3 n);
float4 frac (float4 n);

我们可以在多种操作中使用Frac，如噪声计算、随机重复模式等。

为了理解这个概念，我们将执行以下操作：我们将创建一个类型为“Unlit shader”的新着色器，我们将其称为USB_function_FRAC。我们将开始添加一个名为“size”的属性，稍后将使用该属性来增加或减少圆的大小。

Shader "USB/USB_function_FRAC"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Size ("Size", Range(0.0, 0.5)) = 0.3
    }
    SubShader
    {
       ...
        Pass
        {
           ...
            float _Size;
           ...
        }
    }
}

我们将执行的第一个操作是乘以UV坐标，以在片段着色器阶段获得重复图案。

fixed4 frag (v2f i) : SV_Target
{
    // increase the amount of texture repetitions
    i.uv *= 3;
    fixed4 col = tex2D(_MainTex, i.uv);

    return col;
}

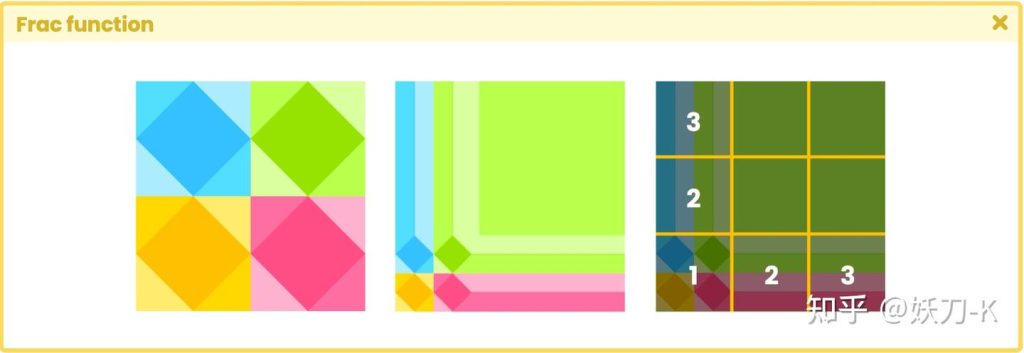

如果我们回到Unity并将纹理集指定为“clamp”，我们将在图4.1.7a中获得类似的结果。我们可以注意到，图像中的边缘纹素是随着自身拉伸的。

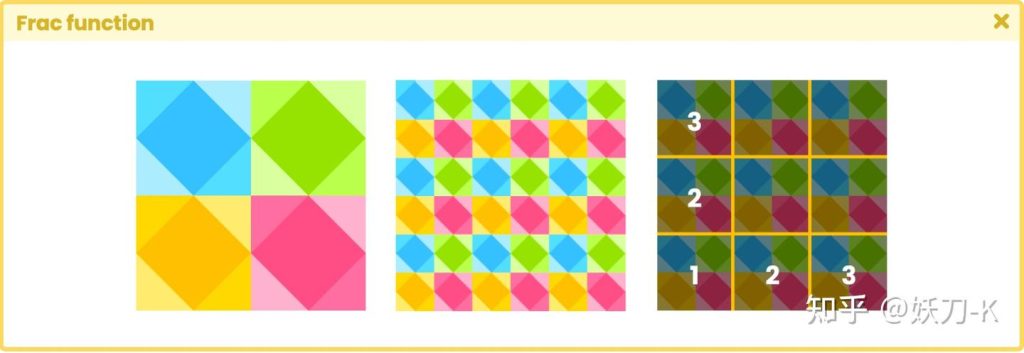

在这种情况下，我们可以使用“frac”函数返回UV坐标的分数值，以生成定义的重复图案。

fixed4 frag (v2f i) : SV_Target
{
    // increase the amount of texture repetitions
    i.uv *= 3;
    float2 fuv = frac(i.uv);

    fixed4 col = tex2D(_MainTex, fuv);

    return col;
}

值得一提的是，对纹理执行此操作并不是很有用，因为我们可以从Inspector轻松地将其设置为“Repeat”模式。

对于一个更实用的示例，让我们使用圆沿纹理生成一个图案。

fixed4 frag (v2f i) : SV_Target
{
    // increase the amount of texture repetitions
    i.uv *= 3;
    float2 fuv = frac(i.uv);
    // generate the circle
    float circle = length(fuv - 0.5);
    // flip the colors and return an integer value
    float wCircle = floor(_Size / circle);
    // fixed4 col = tex2D(_MainTex, fuv);

    return float4(wCircle.xxx, 1);
}

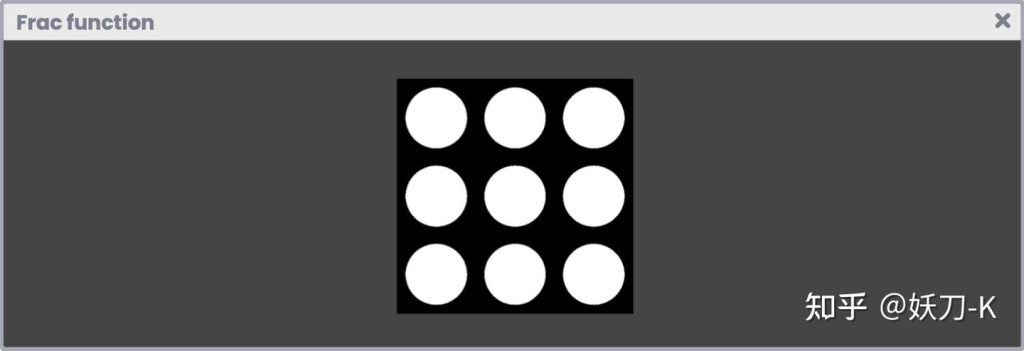

如果我们注意返回值，我们会注意到RGB（wCircle.xxx）中的输出颜色使用了相同的通道。如果我们修改_Size属性的值，我们可以增加或减少圆的大小。

---
