当我们用C#编写脚本时，在Unity中，我们可以使用debug.Log函数调试程序。该函数允许我们在控制台上打印代码的操作，但是，该函数在Cg或HLSL中不可用。

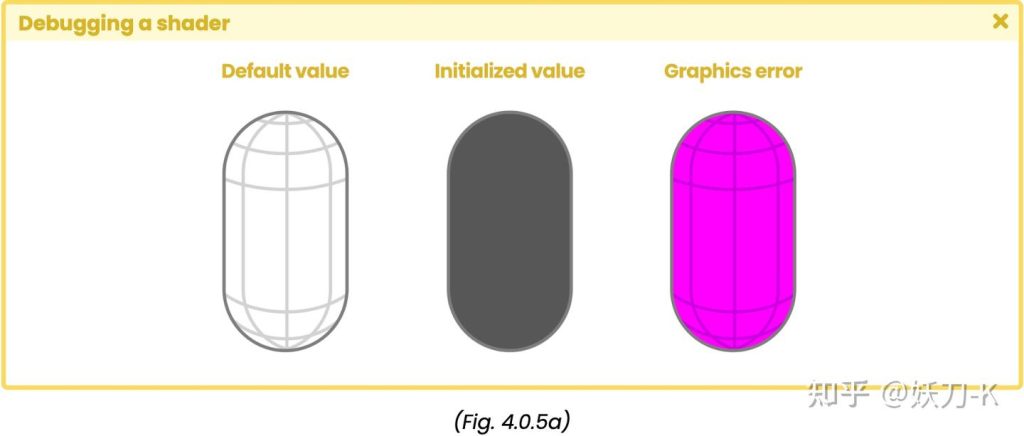

那么我们如何调试着色器呢？为此，我们必须考虑几个因素，主要包含集中特殊的颜色。在着色器中，我们经常看到三种重要的颜色，它们是白色（1，1，1、1）、黑色（0，0，0、1）和品红色（1，0，1、2）。白色表示默认值，而黑色表示初始化值。品红色表示图形错误，事实上，资产导入Unity之后,在场景中显示成品红色是非常常见的。

为了充分了解这个概念，让我们先回忆一下ShaderLab中Properties的声明方式，然后我们将重新创建一个颜色属性如下图。

_Color ("Tint", Color) = (1, 1, 1, 1)

在上面的例子中，默认情况下，属性是用颜色“白色”声明的，我们可以在这个四维向量(1,1,1,1)中确保这一点。此属性将在Unity Inspector中生成一个“颜色选择器”，其颜色和/或初始化值将为白色。

让我们分析另一个属性。

_MainTex ("Texture", 2D) = "white"{}

同样，这个属性将在Unity Inspector中生成一个“纹理选择器”，但如果我们不使用任何纹理，它的默认颜色是什么？它的颜色将是白色，我们可以在“白色”这个属性值确认这一点。

在我们的代码中，我们经常在内部向量和变量的声明中看到黑色，事实上，将向量初始化为“零”，然后添加一些操作是非常常见的，例如，四维向量“float4 col=0”已初始化为“0”，这意味着它的所有通道（RGBA）都将具有默认值零。

注意，白色表示一个像素的最大亮度，黑色表示其最小亮度。记住这一点很重要，因为随着我们的前进，我们将有一些操作超过最大值（x>1）和最小值（x<0）。在这些情况下，会出现颜色饱和，为此，我们将使用一些函数，如“clamp”，允许我们将值限制在两个数字（最小值和最大值）之间。

为什么我们的物体有时会出现品红色？正如我们已经知道的，这种颜色代表一种“图形错误”。基本上，当GPU无法执行着色器中的操作时，它会返回默认的品红色。在Unity中，这种颜色的原因主要有两个因素：

1. 没有配置渲染管线
2. shader有错误

当我们将资源导入unity的时候，我们需要知道的第一件事是，我们在哪个渲染管道中工作？请记住，在Unity中有三种类型的渲染管道，每种都有不同的配置。

假设我们在URP中导入一个包含具有标准曲面着色器的材质的资源，那么我们的资源将显示为品红色，因为只有Builtin管线才支持这种类型的着色器。要解决此图形错误，我们必须选择材质，转到检查器并将着色器类型更改为“Shader Graphs”中的着色器类型。

一旦我们确定了正在使用的渲染管道的类型，还是现实渲染错误, 下一步我们就必须看看是否是着色器出错了。
着色器中的错误在图形上是明显的，因为对象显示品红色。如果我们注意控制台，我们可以找到它的定义。要解决这些问题，我们需要了解：在HLSL和ShaderLab中写的指令或函数, 大多数错误都是由拼写错误或语法错误引起的。下面，我们将回顾一个相当常见的问题：

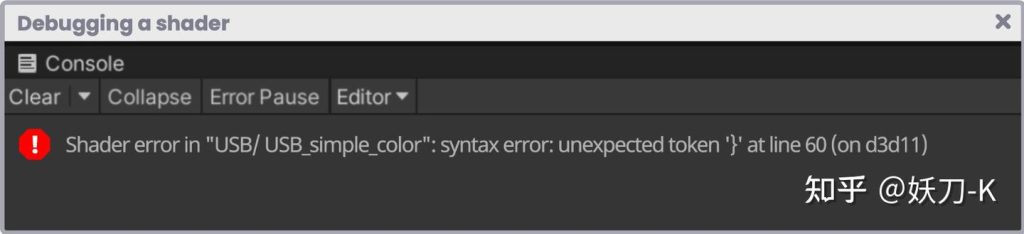

我们如何解读上述声明？在这种情况下，在“Unlit”菜单中找到的名为“USB_simple_color”的着色器在代码行60中有错误，无法在Direct3D 11中编译。

现在，这是着色器的问题吗？为此，我们将分析生成错误的代码行。

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);
    return col // (;)
}

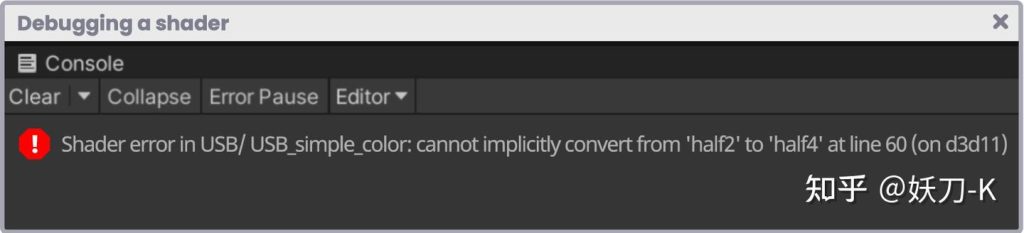

根据控制台的说法，错误是在第60行代码中生成的，但正如我们所看到的，没有问题。我们必须问问自己，发生了什么？错误是因为我们忘记关闭代码行61中的操作。如果我们查看返回，我们会意识到col矢量缺少分号（；），因此GPU认为操作仍在继续，因此无法编译它。

以下是我们经常看到的另一个错误：

half4 frag (v2f i) : SV_Target
{
    half4 col = tex2D(_MainTex, i.uv);
    half2 uv = 0;
    col = uv; // cannot be converted
    return col;
}

在这种情况下，产生误差是因为我们试图将一个四维矢量（col）转换为二维矢量（uv）。二维的col矢量有RGBA或XYZW通道，而二维的uv矢量只有两个通道（RG、RB、GB等）的组合，因此无法从二维矢量转换为四个通道中的一个。

---
