这个函数指的是一个数字的绝对值，作为参数，我们可以传递标量值和向量。

其语法如下：

// return the absolute value of n
float abs(float n)
{
    return max(-n, n);
}

float2 abs (float2 n);
float3 abs (float3 n);
float4 abs (float4 n);

一个绝对值总是会返回到一个正数，它的数学符号由两个框住一个数字的边条组成。

|−3| = 3 absolute value of −3 equals 3
|−5| = 5 absolute value of −5 equals 5
| 6 | = 6 absolute value of 6 is equal to itself

我们的程序可以使用abs（n）函数实现多种效果，包括重新创建万花筒或生成三平面图。事实上，对于第一种情况，我们可以通过计算UV坐标中的绝对值来执行这样的效果。同时，在三平面映射中，我们可以确定网格法线的绝对值，从而在正轴和负轴上生成投影。

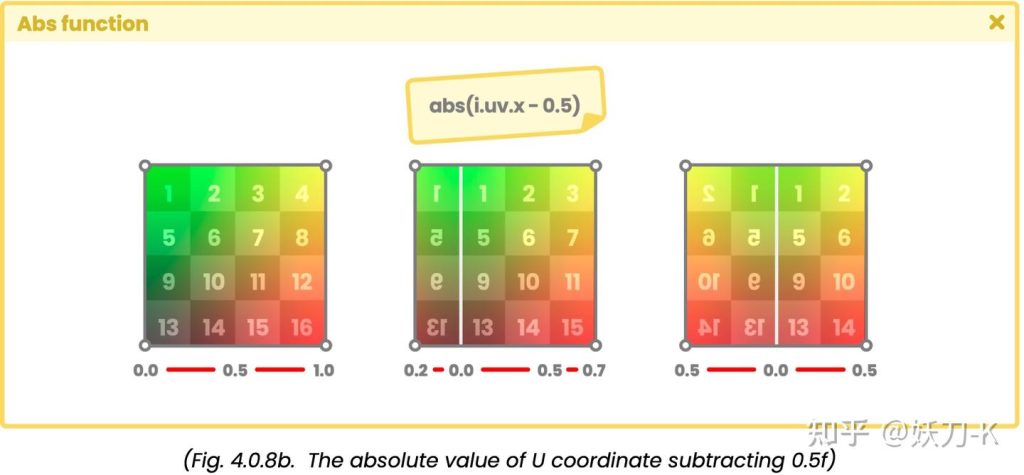

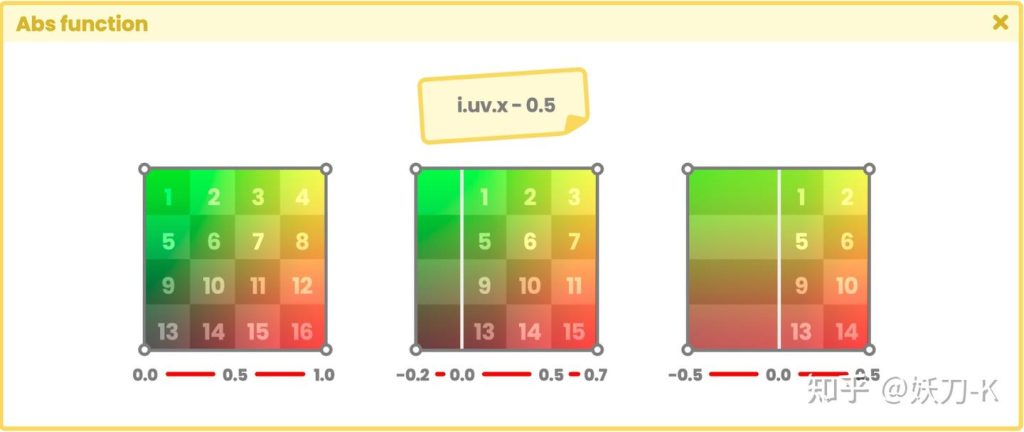

如果我们注意上图UV坐标中的起点，我们会注意到U坐标以四边形为中心减去0.5f，最小值变成负数 [-0.5f].
在本例中，纹素会被拉伸，因为纹理已设置选项“wrap mode”的值为“clamp”。在这种情况下，我们可以应用绝对值来生成“镜像”效果。

接下来，我们将开发万花筒的效果，以充分理解这个概念。我们将从创建一个新的着色器类型“Unlet shader”开始，我们将其称为“USB_function_ABS”。然后，我们在着色器属性中声明一个新属性，稍后将使用该属性来旋转UV坐标。

Shader "USB/USB_function_ABS"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        // let's add a property to rotate the UV
        _Rotation ("Rotation", Range(0, 360)) = 0
    }
}

由于完整旋转是360度，因此_Rotation的范围是0到360之间。然后我们定义全局变量_Rotation来连接这个属性。

Pass
{
    CGPROGRAM
   ...
    sampler2D _MainTex;
    float4 _MainTex_ST;
    float _Rotation;
   ...
    ENDCG
}

我们可以计算U和V坐标的绝对值来生成效果，并在片段着色器阶段将这些新值用于输出颜色。

fixed4 frag (v2f i) : SV_Target
{
    // let's calculate the absolute value of U
    float u = abs(i.uv.x - 0.5);
    // let's calculate the absolute value of V
    float v = abs(i.uv.y - 0.5);

    fixed col = tex2D(_MainTex, float2(u, v));
    UNITY_APPLY_FOG(i.fogCoord, col);
    return col;
}

根据我们指定为_MainTex的纹理配置，可能会发生两件主要的事情，
1.如果纹理设置为“Repeat”，则UV坐标的负区域将填充相同纹素的重复。
2.另一方面，如果纹理配置对应于“Clamp”，则图像的纹素将以与图4.0.8a中相同的方式拉伸。

无论配置如何，镜像效应都会很明显，因为我们使用了每个坐标的abs（n）函数。
如果要旋转UV坐标，可以使用“ Shader Graph package”包中包含的Unity_rotate_Degrees_float函数。

void Unity_Rotate_Degrees_float
(
    float2 UV,
    float2 Center,
    float Rotation,
    out float2 Out
)
{
    Rotation = Rotation * (UNITY_PI / 180.0f);
    UV -= Center;
    float s = sin(Rotation);
    float c = cos(Rotation);
    float2x2 rMatrix = float2x2(c, -s, s, c);
    rMatrix *= 0.5;
    rMatrix += 0.5;
    rMatrix = rMatrix * 2 - 1;
    UV.xy = mul(UV.yx, rMatrix);
    UV += Center;
    Out = UV;
}

由于函数的类型为“void”，因此我们必须初始化片段着色器阶段字段中的一些变量，然后将它们作为参数传递。

Unity_Rotate_Degrees_float() { … }

fixed4 frag (v2f i) : SV_Target
{
    float u = abs(i.uv.x - 0.5);
    float v = abs(i.uv.y - 0.5);
    // we link the rotation property
    float rotation = _Rotation;
    // we center the rotation pivot
    float center = 0.5;
    // let's generate new UV coordinates for the texture
    float2 uv = 0;

    Unity_Rotate_Degrees_float(float2(u,v), center, rotation, uv);

    fixed4 col = tex2D(_MainTex, uv);
    UNITY_APPLY_FOG(i.fogCoord, col);
    return col;
}

函数Unity_Rotate_Degrees_float中的第一个参数对应于我们要旋转的UV坐标，然后是旋转中心，然后是度数，最后我们要获取的输出值：纹理新的旋转角度。

---
