现实世界中随处可见光影的踪迹，光和影是给物体带来体积感的重要元素之一。有趣的是，所有不发光的物体本质都是黑暗的，而我们之所以能够分辨出物体的一个面和另一个面，靠的是光作用于物体表面产生的效果。光照属性的初始值为“0”，因为 0 等于“黑色”。

环境光颜色是指由多个光源反射产生的照明色调。在计算机图形学中，这一名词来自于一种称为全局光照（GI）的技术。全局光照是一种能够计算间接光照的算法，可以模拟光线反射的自然现象。

Unity 允许我们通过菜单“窗口 / 渲染 / 照明”打开照明（Lighting）窗口，我们可以在其中找到项目的全局照明属性。在“环境（Environment）”选项卡中，我们将在着色器中直接使用其中的两个属性，它们分别是

• 1. 光源
• 2. 环境光颜色

为了演示如何使用它们，让我们创建一个名为 USB_ambient_color 的无光照着色器，并关注名为 UNITY_LIGHTMODEL_AMBIENT 的内部变量。

让我们从在着色器中创建一个用于增加或减少环境光总量的范围（range）开始。让我们将范围设置成 0 ~ 1，其中 0 代表环境光为 0%；1 表示环境光为 100%。这样，我们就可以动态更改环境光的值。

Shader "USB/USB_ambient_color"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Ambient ("Ambient Color", Range(0, 1)) = 1
    }
    SubShader { ... }
}

我们将环境光属性 _Ambient 的默认值设为 1，代表环境光默认为 100%。

接着，我们需要为刚才创建的属性声明连接变量，这样才能在着色器程序中使用它们：

Pass
{
    CGPROGRAM
    ...
    sampler2D _MainTex;
    float4 _MainTex_ST;
    float _Ambient;
    ...
    ENDCG
}

现在来到片元着色器，我们按照下图代码所示使用内置变量 UNITY_ LIGHTMODEL_AMBIENT ：

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);
    float3 ambient_color = UNITY_LIGHTMODEL_AMBIENT * _Ambient;
    col.rgb += ambient_color;

    return col;
}

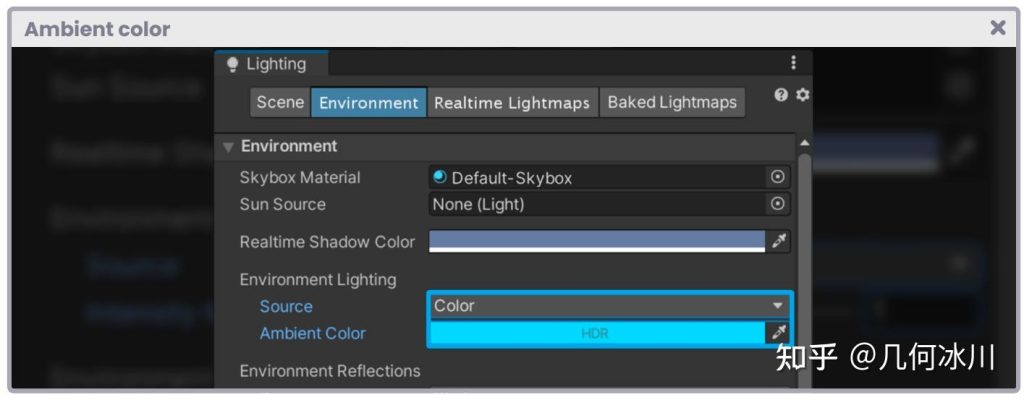

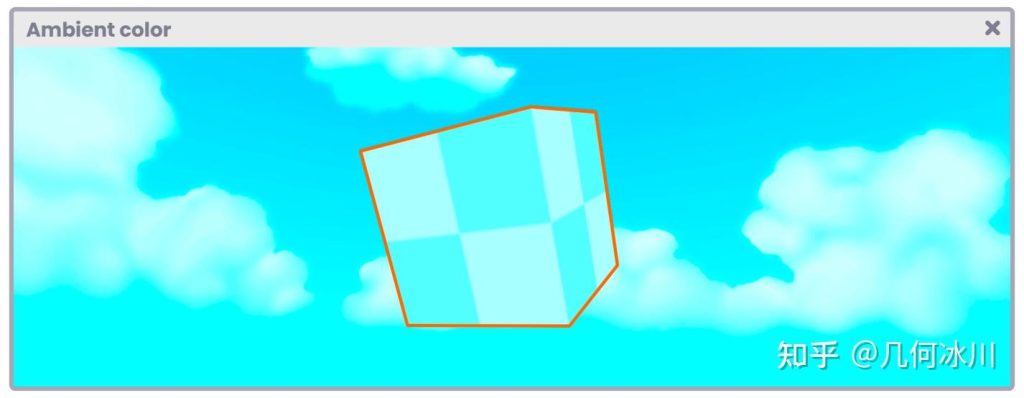

_Ambient 和 内置变量 UNITY_ LIGHTMODEL_AMBIENT 的乘积被储存到了一个三维向量 ambient_color 中。最后，将环境光颜色的 RGB 通道与贴图颜色相加。到这一步，我们的环境光颜色已经在工作了。现在，我们只需要来到光照窗口的环境选项卡，将“光源（Source）”属性设置为“颜色（Color）”，接着为“环境光颜色（Ambient Color）”选一个你喜欢的颜色！

值得一提的是，“环境光颜色”属性默认是高动态范围（HDR）颜色，这代表高精度。出于这个原因，在前面例子中的三维向量 ambient_color 被声明成了“float3”类型。

---
