菲涅尔（Fresnel）效应（由奥古斯丁-让·菲涅耳发现）也被称为边缘效应（Rim effect），是一种反射，其大小与物体法线与相机方向的夹角成正比。

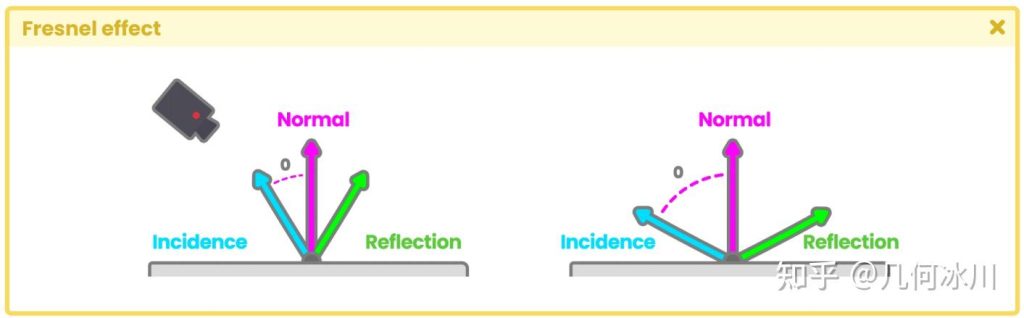

模型表面距离相机越远，菲涅尔反射就越多，因为入射方向（相机）与物体法线之间的角度越大。

当入射方向（相机）与法线之间的夹角为“0°”时没有反射存在，因为两个向量是平行的。当入射方向与法线之间的夹角为“90°”时全反射，两个向量相互垂直。这非常有趣，因为当没有反射时函数返回黑色，全反射时则返回白色，这些值对应于像素的最大和最小光照值。

为了理解这个概念，我们需要分析来自 Shader Graph 中的 Fresnel Effect 节点函数。

void unity_FresnelEffect_float(
    in float3 normal,
    in float3 viewDir,
    in float power,
    out float Out
)
{
    Out = pow((1 - saturate(dot(normal, viewDir))), power);
}

在这个函数中发生了一些事情，我们将在本节中进行详细介绍，现在我们暂时先只关注输出的内部操作。这一操作可分为三个过程：

saturate(dot(normal, viewDir))

这个操作将确定入射方向与模型法线之间的夹角，并返回范围在 0 ~ 1（[0.0f, 1.0f]）之间的数。

我们已经知道，“点乘（dot）”函数根据夹角的值将返回计算结果。由于反射操作只需要一个介于“0”和“1”之间的值，因此我们添加了函数 saturate，以限制这个范围之间的值。

// 最小返回“0”，最大返回“1”
float saturate (float x)
{
    return max(0, min(1, x));
}

// 允许设置最小值与最大值的区间
float clamp (float x, float a, float b)
{
    return max(a, min(b, x));
}

Saturate 函数与 clamp 函数功能类似，不同之处在于后者可以修改最小值和最大值来控制范围。

让我们从“1 – x”继续。

( 1 – x )

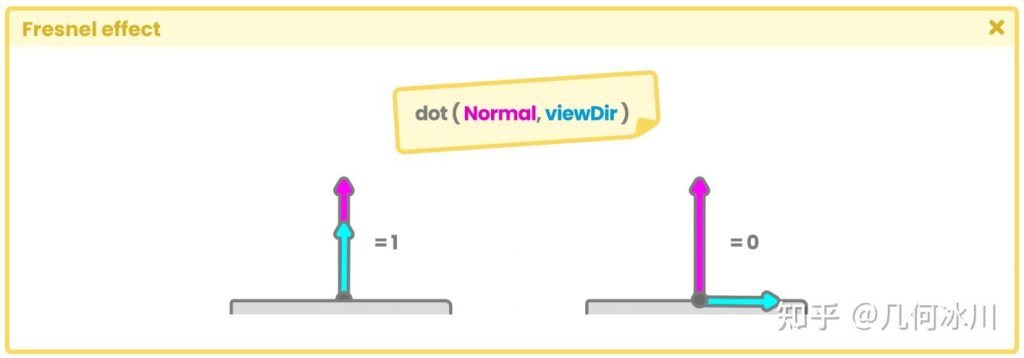

要理解这个操作的本质，我们必须回到之前的练习。当视线方向和表面法线平行且指向同一方向时，点乘将返回 “1”。这对我们来说是个问题，因为我们需要该操作返回“0”，也就是黑色。

而“1 – x”运算具有如下翻转结果的功能：

// 如果法线和视线方向在同一方向上平行
saturare(dot(float3(0, 1, 0), float3(0, 1, 0))) = 1
1 - 1 = 0

// 如果法线和视线方向垂直
saturare(dot(float3(0, 1, 0), float3(1, 0, 0))) = 0
1 - 0 = 1

最后，在函数中，我们可以找到“pow(x, power)”运算。该运算允许我们增加或减少反射的范围。

让我们创建一个名为 USB_fresnel_effect 的无光照着色器帮助我们更好的了解 Shader Graph 中的 Fresnel 节点中的操作。让我们在着色器中加入以下代码：

Shader "USB/USB_fresnel_effect"
{
    Properties { ... }
    SubShader
    {
        Pass
        {
            CGPROGRAM
            ...
            void unity_FresnelEffect_float() { ... }
            ...
            ENDCG
        }
    }
}

需要注意的是，函数 unity_FresnelEffect_float 的返回类型是“void”，在第 4.0.4 小节中我们曾学习了无返回值和有返回值的函数的区别。在上述的代码中，我们声明了一些变量，并将它们作为参数传入函数中。

让我们在片元着色器中声明该函数。

void unity_FresnelEffect_float() { … }

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);

    // 初始化无返回值函数
    unity_FresnelEffect_float(0, 0, 0, 0);

    return col;
}

函数的第一个参数代表了物体在世界空间的法线，所以我们需要在顶点输入的结构体中使用 NORMAL 语义，并在顶点着色器阶段变换法线的坐标空间。

由于我们需要在片元着色器中使用法线，因此需要在顶点输出结构体中声明一个向量用以存储变换后的法线。

// 顶点输入
struct appdata
{
    float4 vertex : POSITION;
    float2 uv : TEXCOORD0;
    float3 normal : NORMAL;
};

// 顶点输出
struct v2f
{
    float4 vertex : SV_POSITION;
    float2 uv : TEXCOORD0;
    float3 normal_world : TEXCOORD1;
    float3 vertex_world : TEXCOORD2;
};

顶点输出结构体中的向量 vertex_world 用于计算视线方向。

如果我们多加留心，就会发现上面的步骤和前面学习反射的小节中所演示的代码一致。

v2f vert (appdata v)
{
    v2f o;
    o.vertex = UnityObjectToClipPos(v.vertex);
    o.uv = TRANSFORM_TEX(v.uv, _MainTex);
    o.normal_world = normalize(mul(unity_ObjectToWorld, float4(v.normal, 0))).xyz;
    o.vertex_world = mul(unity_ObjectToWorld, v.vertex);
    return o;
}

现在让我们来到片元着色器中声明两个向量，一个代表法线、另一个代表视线方向。

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);

    float3 normal = i.normal_world;
    float3 viewDir = normalize(_WorldSpaceCameraPos - i.vertex_world);

    // 将法线与视线方向传入函数中
    unity_FresnelEffect_float(normal, viewDir, 0, 0);

    return col;
}

在上面的例子中，三维向量 normal 已经存储了世界空间的法线值；另一个三维向量 viewDir 则计算了视线方向，两个向量均作为参数传入 unity_FresnelEffect_float 函数中，并将在函数内的计算中被使用。第三个参数是“菲涅尔指数”，我们可以传入一个范围来控制反射的范围。

Shader "USB/USB_fresnel_effect"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _FresnelPow ("Fresnel Power", Range(1, 5)) = 1
        _FresnelInt ("Fresnel Intensity", Range(0, 1)) = 1
    }
    SubShader { ... }
}

我们将 _FresnelPow 属性作为函数的第三个参数。作为一个指数值，我们将使用 _FresnelInt 属性来增加或减少对象中的菲涅尔效应的量。接着，我们需要在程序中为这两个属性声明连接变量：

CGPROGRAM
...
sampler2D _MainTex;
float4 _MainTex_ST;
float _FresnelPow;
float _FresnelInt;
...
ENDCG

这一步完成之后，属性与后续的着色器程序产生关联，我们就可以在 Unity 的检查其中动态修改它们了。现在，我们将 _FresnelPow 作为第三个参数传入函数中。

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);

    float3 normal = i.normal_world;
    float3 viewDir = normalize(_WorldSpaceCameraPos - i.vertex_world);

    // 将指数值传入函数中
    unity_FresnelEffect_float(normal, viewDir, _FresnelPow, 0);

    return col;
}

第四个参数对应的是函数输出值，我们将在这里保存颜色输出。为此，我们只需在函数中创建并添加一个浮点数类型的变量：

fixed4 frag (v2f i) : SV_Target
{
    fixed4 col = tex2D(_MainTex, i.uv);

    float3 normal = i.normal_world;
    float3 viewDir = normalize(_WorldSpaceCameraPos - i.vertex_world);
    // initialize the color output in black
    float fresnel = 0;

    // 添加输出颜色
    unity_FresnelEffect_float(normal, viewDir, _FresnelPow, fresnel);

    col += fresnel * _FresnelInt;
    return col;
}

在上面的例子中，我们声明了一个名为 fresnel 的变量并赋值为“0”（黑色），它作为第四个参数被传入函数中并作为其输出值，即 unity_ FresnelEffect_float 函数的最终运算结果。

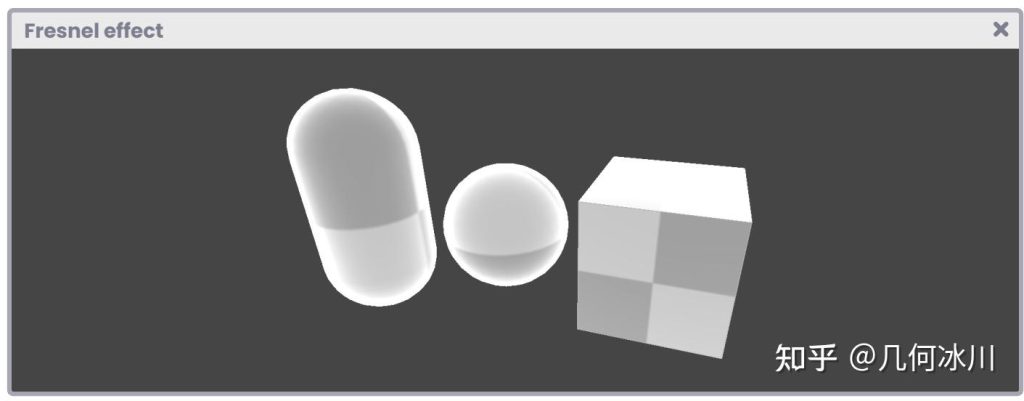

完成编写后，我们就可以看到菲涅尔反射的效果了。由于其强度（_FresnelInt）已被添加到名为“col”的基本纹理颜色中，这样就为场景中的物体增加了反射效果，同时也允许我们修改其强度值。

---
