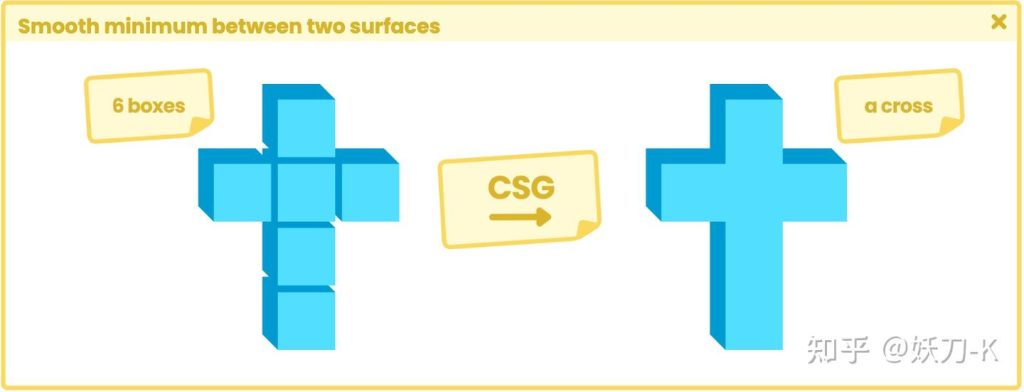

在使用球体跟踪时，通常会使用运算符来生成详细的对象，例如，如果我们想在着色器中创建十字架，我们可以使用六个立方体，将它们连接起来并模拟形状（如图11.0.3a所示）。这种技术被称为构造实体几何体（CSG），它表示我们可以由基本形状(比如立方体,圆柱体,球体等)来组成复杂的形状。

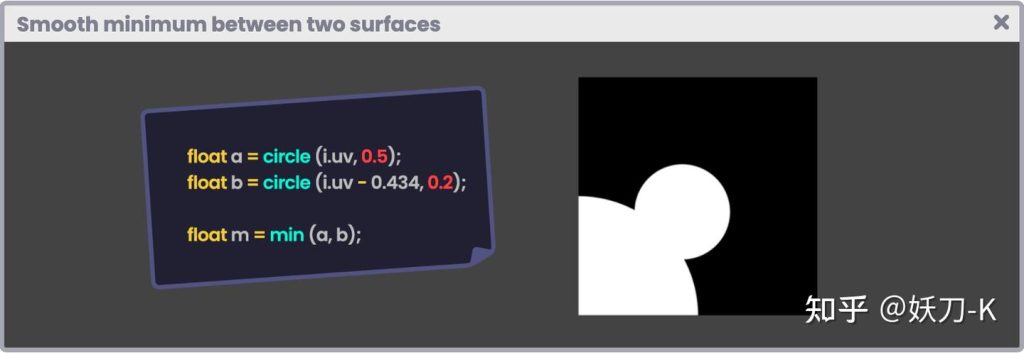

该技术中最常用的运算符之一对应于两个曲面之间的并集。为了计算它，我们可以简单地使用第4.1.9节中详细介绍的“min”函数。然而，鉴于其性质，可以产生类似上图的效果，就是把几个面连了起来。

如果我们想混合两个曲面，我们可以使用Íñigo Quilez的解决方案，他提出了一个称为“多项式平滑最小值”的函数，该函数使用线性插值来近似“a”和“b”之间的最小值，其中每个曲面都指代特定的形状。

其语法如下：

float smin (float a, float b, float k)
{
    float h = clamp(0.5 + 0.5 * (b - a) / k, 0.0, 1.0);
    return lerp(b, a, k) - k * h * (1.0 - h);
}

为了理解它的实现，我们将从创建一个类型为“Unlit shader”的新着色器开始，我们将其称为USB_function_SMIN。我们将在两个圆之间进行平滑的并集，并将其投影到场景中的四边形上。

我们将从定义一些属性开始。这些我们稍后将在效果的开发中使用。

Shader "USB/USB_function_SMIN"
{
    Properties
    {
        _Position ("Circle Position", Range(0, 1)) = 0.5
        _Smooth ("Circle Smooth", Range(0.0, 0.1)) = 0.01
        _k ("K", Range(0.0, 0.5)) = 0.1
    }
    SubShader
    {
        Pass
        {
           ...
            float _Position;
            float _Smooth;
            float _K;
           ...
        }
    }
}

如上所述，我们将创建两个圆（a和b）。其中一个将保持静止，而第二个将左右移动，以欣赏“smin”功能操作。“_Position”属性与圆的移动直接相关。

另一方面，“_Smooth”将用于平滑集合本身的边，而“_K”将用于计算两个圆之间的插值。

我们声明了一个函数，该函数允许我们生成一个圆。

float circle (float2 p, float r)
{
    float d = length(p) - r;
    return d;
}

正如我们所看到的，前面的函数具有与我们之前看到的相同的结构。使用“smin”函数，我们可以在片段着色器阶段计算两个圆之间的最小平滑度。

float circle (float2 p, float r) { ... }

float smin (float a, float b, float k) { ... }

fixed4 frag (v2d i) : SV_Target
{
    float a = circle(i.uv, 0.5);
    float b = circle(i.uv - _Position, 0.2);

    float s = smin(a, b, _K);
    return float4(s.xxx, 1);
}

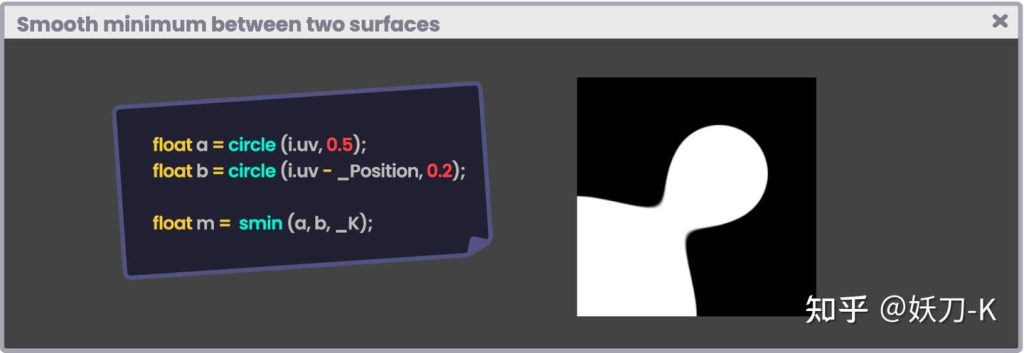

在上一个例子中，我们创建了两个称为“a”和“b”的标量变量。这些变量用于函数“smin”，该函数返回两个形状之间的平滑并集。

通过将“smoothstep”函数合并到运算中，我们可以为整个合成生成平滑的边。

fixed4 frag (v2d i) : SV_Target
{
    float a = circle(i.uv, 0.5);
    float b = circle(i.uv - _Position, 0.2);

    float s = smin(a, b, _K);

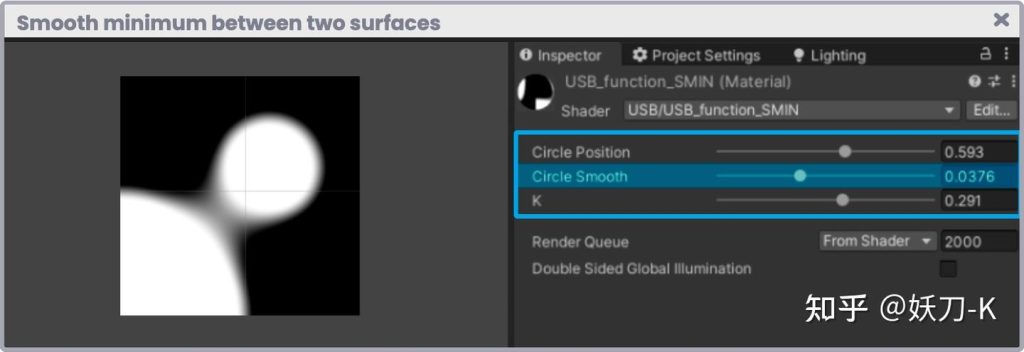

    float render = smoothstep(s - _Smooth, s + _Smooth, 0.0);
    return float4(render.xxx, 1);
}

---
